CH2 Multi-Function Smart Battery Charger, Dual-Slot LCD Display,Supports 1.5V Li-ion, 3.7V, 3.8V, LiFePO4, Ni-MH, AA, AAA, 18650

$42.99$55.8923% off

Color: LII-CH2

Quantity

ADD TO CART
BUY NOW

Share

PRODUCT DETAIL

Key Selling Points

  • 🏆 Rare 1.5V Li-ion battery support – safely charges 4.2V-to-1.5V step-down lithium cells

  • 🧠 Intelligent microcomputer control system, auto-detects Li-ion / Ni-MH / 1.5V batteries

  • 🔋 Two independent charging slots, capable of mixing different battery sizes

  • ⚡ Selectable charging current: 500mA or 1000mA

  • 🔍 Clear LCD screen displays charging status, voltage and current at a glance

  • 🛡️ 0V activation function + multiple safety protections


Detailed Product Description

CH2 Intelligent Multi-Function Charger – One charger for many cells, safe and fast charging

The CH2 charger is a truly universal dual-slot charger. It not only supports standard 3.7V Li-ion, 3.8V IMR, 3.2V LiFePO4 and 1.2V Ni-MH/Ni-Cd batteries, but also features dedicated support for 1.5V constant-voltage lithium batteries (4.2V to 1.5V step-down) , making it one of the few chargers on the market that can safely charge these special cells.

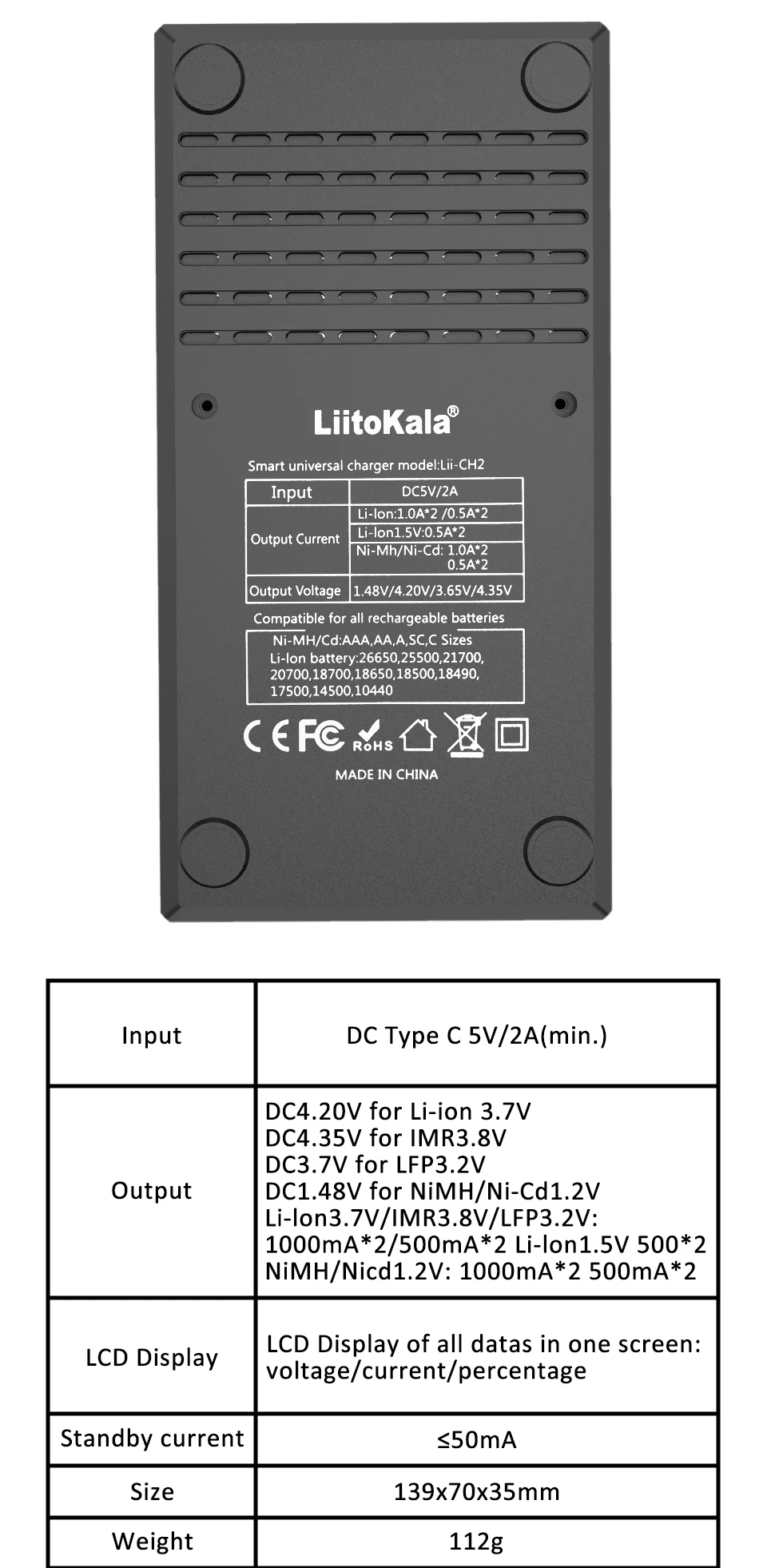

⚙️ Product Specifications

Item

Specification

Input

DC 5V 2A (USB port, requires a USB adapter rated at 2A or higher)

Compatible Battery Types

Li-ion 3.7V / IMR 3.8V / LiFePO4 3.2V / Ni-MH & Ni-Cd 1.2V / 1.5V Li-ion batteries

Output Voltage

4.20V (Li-ion) / 4.35V (IMR) / 3.65V (LiFePO4) / 1.48V (Ni-MH/Ni-Cd)

Charging Current

500mA / 1000mA selectable (fixed at 500mA for 1.5V Li-ion)

Cut-off Current

≤100mA

Charging Mode

Constant Current / Constant Voltage (CC/CV)

Protection Functions

Overcharge, over-discharge, short circuit, reverse polarity protection, intelligent bad battery detection

Activation Function

0V voltage activation; 1.65V–2.20V batteries can be trickle-charged for recovery

Display

High-definition LCD screen

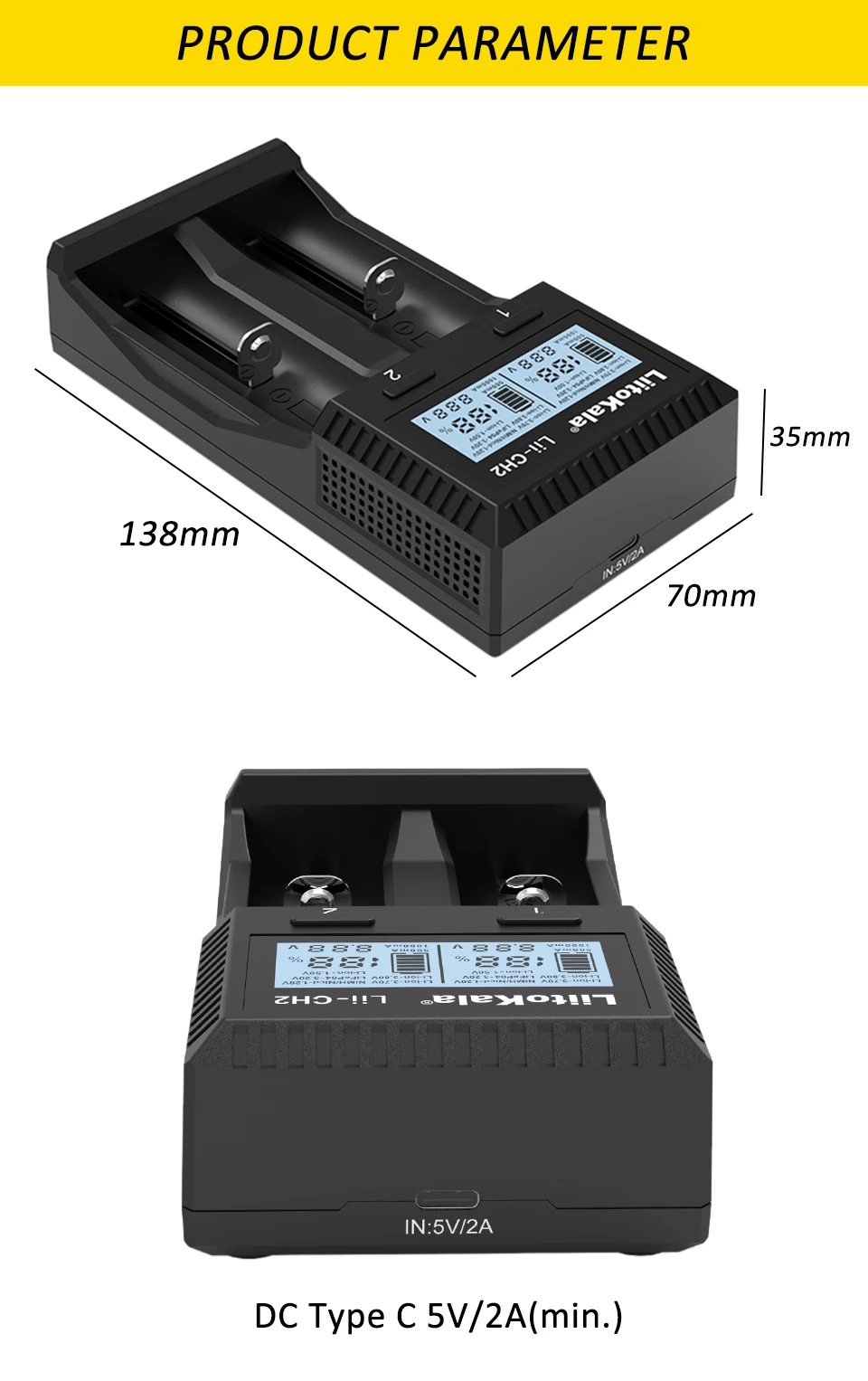

Dimensions

139mm × 70mm × 35mm

Weight

112g (excluding USB cable)

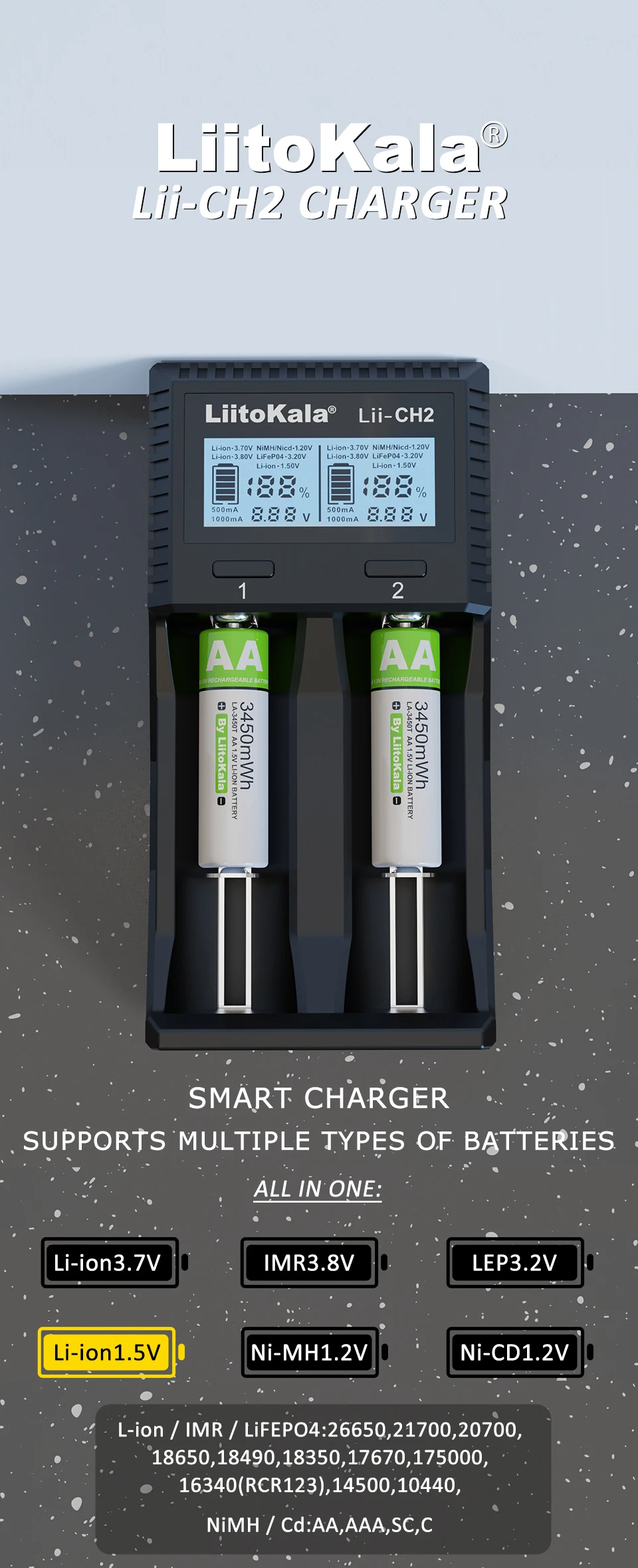

🔋 Compatible Battery Sizes

Cylindrical Li-ion / IMR / LiFePO4:
26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

Ni-MH / Ni-Cd:
AA, AAA, SC, C

1.5V Li-ion:
Suitable for constant-voltage 1.5V Li-ion batteries (with built-in 4.2V step-down circuit)


🧠 Smart Operation & Display

  • Battery Type Selection: Within 9 seconds after inserting batteries and powering on, click the “MODE” button to cycle through Li-ion 3.7V, IMR 3.8V, and LiFePO4 3.2V. Ni-MH/Ni-Cd and 1.5V Li-ion batteries are automatically identified; no manual type switching is required.

  • Charging Current Adjustment: Before charging starts, long press the “MODE” button to toggle between 500mA and 1000mA (for 1.5V Li-ion batteries, the current is fixed at 500mA and cannot be changed).

  • Battery type cannot be changed during charging, ensuring safe operation.


🚀 Product Highlights

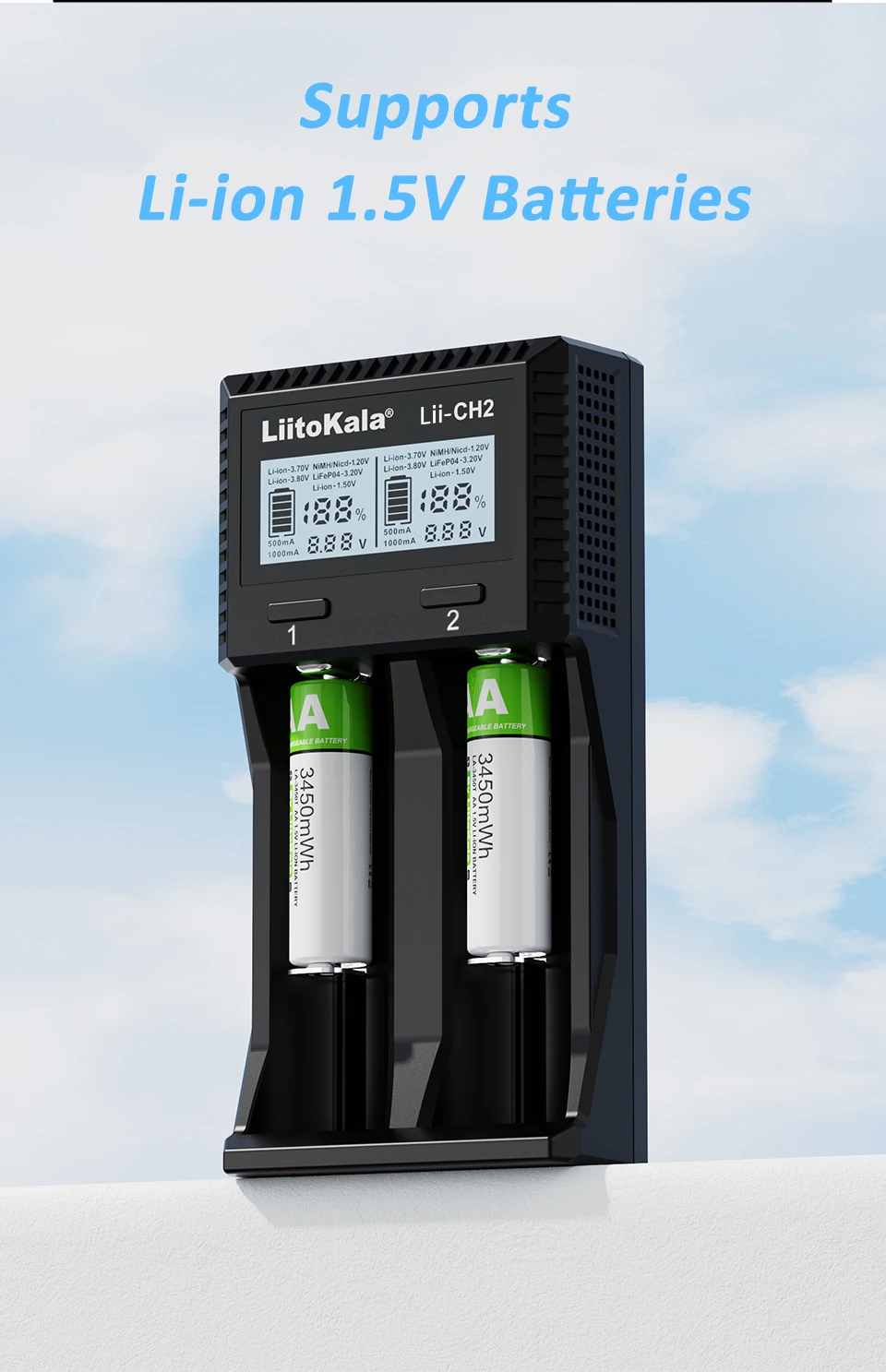

  1. Dedicated Charging Support for 1.5V Li-ion Batteries
    Most chargers on the market cannot properly charge 1.5V constant-voltage lithium batteries. The CH2 features a specially designed 500mA fixed-current charging program for these cells, keeping them safe and extending their life.

  2. 0V Low-Voltage Activation & Recovery
    For over-discharged batteries with extremely low voltage, the charger automatically provides a weak trickle activation current, attempting to wake up “sleeping” cells and help recover usable batteries.

  3. Multiple Circuit Protections
    Built-in safeguards against overcharge, over-discharge, short circuit, and reverse polarity. The charger can also intelligently detect defective batteries before charging begins and will refuse to charge them.

  4. Clear LCD Display at a Glance
    Real-time display of charging status, battery type, voltage, and current for each slot. Say goodbye to blind charging and enjoy greater peace of mind.

  5. Portable Design with USB Power Supply
    Compact and palm-sized. Powered by a standard 5V 2A USB source, it works with phone chargers, power banks, car USB ports, and many other scenarios.


⚠️ Safety Warnings & Usage Notes

  • Use this charger only indoors at room temperature.

  • Be sure to use a USB adapter with an output of 5V and at least 2A to avoid insufficient power supply.

  • Before charging, refer to the battery manufacturer’s recommended charging current and do not exceed the maximum allowed current.

  • The charger may become warm during operation. Keep it away from children and ensure adequate ventilation.

  • When not in use, disconnect the power and remove the batteries.

  • The measurement data displayed by this product is for general reference only. For precise measurements, please use professional instruments.

  • Do not charge non-rechargeable batteries or any battery types not listed in this manual.

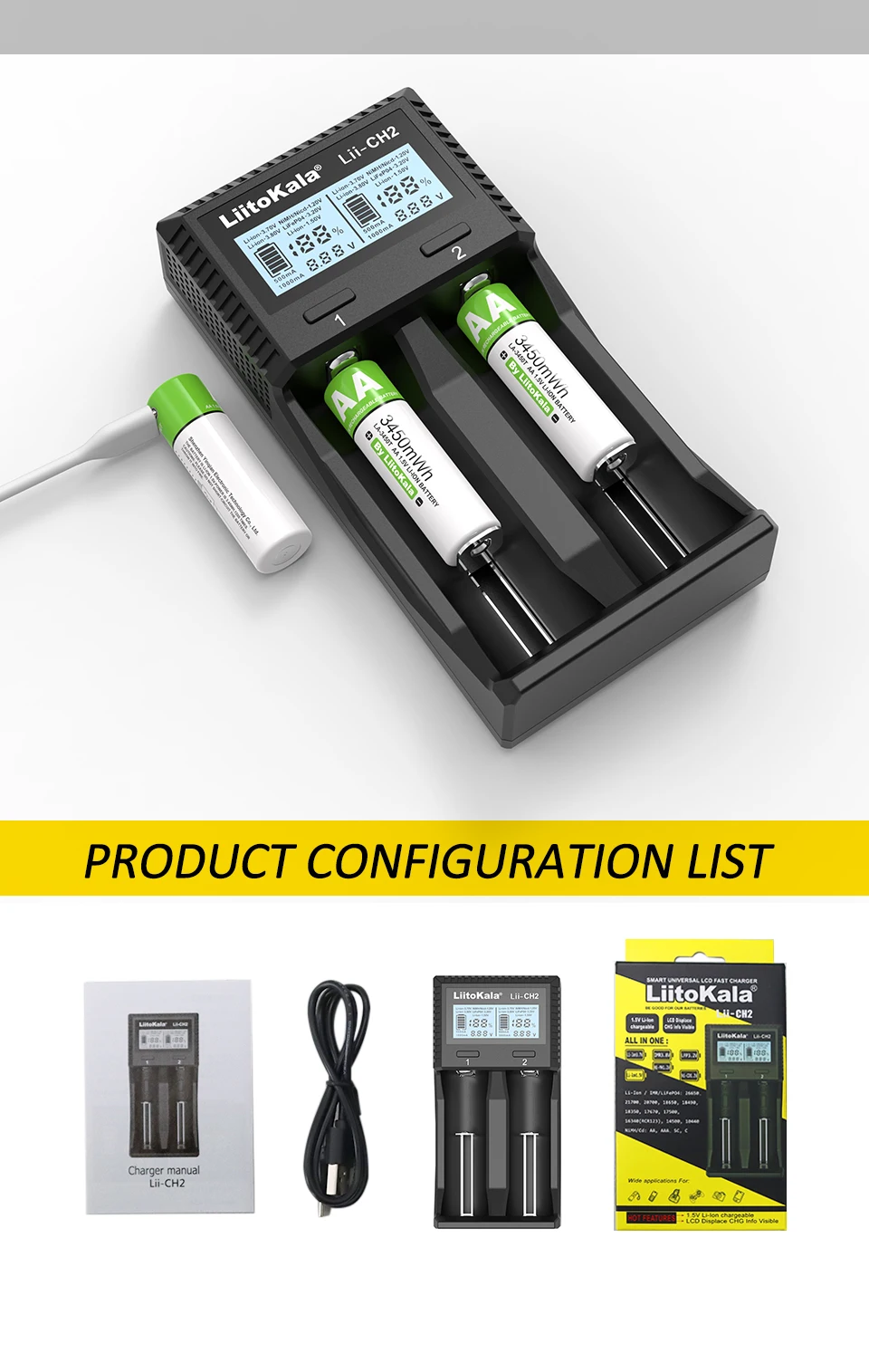

📦 Package Includes

1 × CH2 Smart Battery Charger
1 × USB Charging Cable
1 × User Manual
